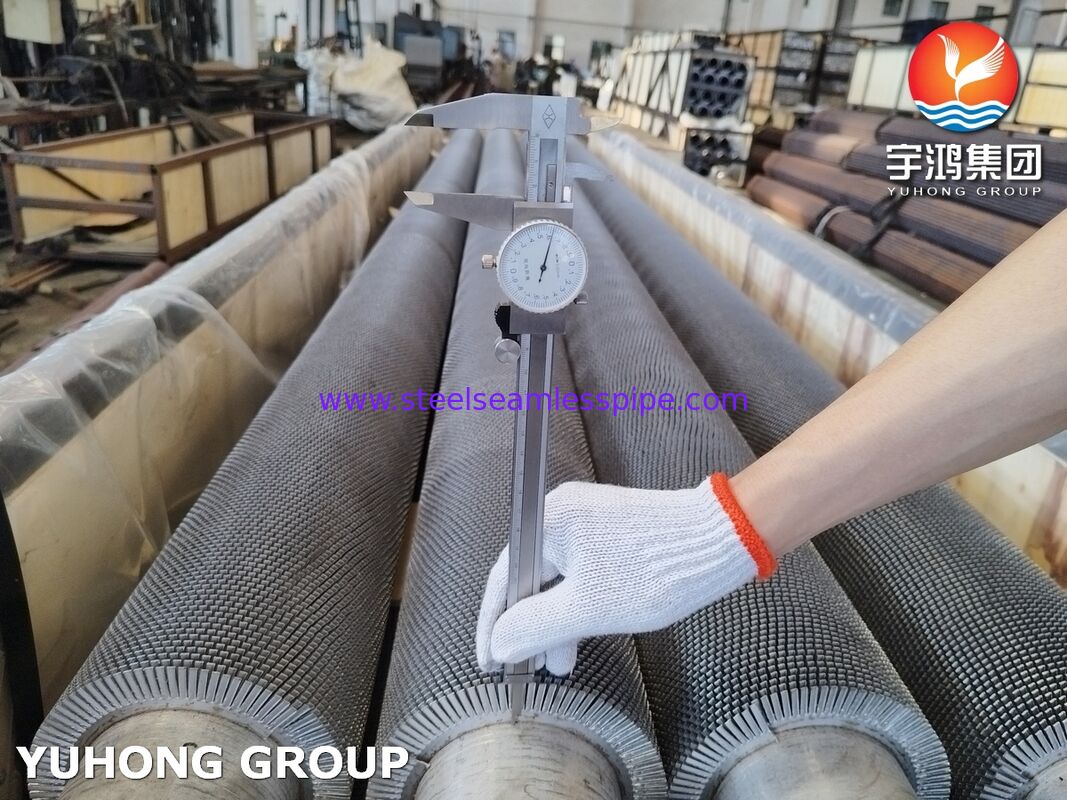

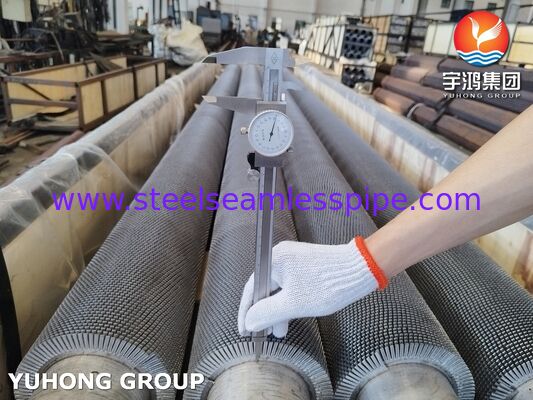

ASTM A312 TP304H Serrated Finned Tube: High-Performance Stainless Steel Heat Transfer Solution
As an experienced export sales specialist with over 12 years in the heat exchanger and boiler industry, I have helped hundreds of global clients source premium serrated finned tubes for demanding high-temperature applications. Our ASTM A312 TP304H serrated finned tubes are manufactured to the highest international standards, delivering exceptional heat transfer efficiency, corrosion resistance, and long-term reliability. Whether you need custom lengths or specific fin configurations, we provide OEM solutions with fast global shipping and full traceability.
ASTM A312 TP304H Serrated Finned Tube: Detailed Product Introduction
The ASTM A312 TP304H Serrated Finned Tube is a premium stainless steel heat exchanger component designed for superior thermal performance in high-temperature and corrosive environments. The base tube conforms strictly to ASTM A312 TP304H (a high-carbon austenitic stainless steel grade), while the serrated (sawtooth/zigzag) spiral fins are high-frequency welded for maximum bonding strength. This combination creates a product that significantly outperforms plain tubes by increasing the external heat transfer surface area by 8–12 times, making it ideal for efficient heat exchange in industrial systems.
Structure of ASTM A312 TP304H Serrated Finned Tube: Base Tube and High-Frequency Welding Process
Our ASTM A312 TP304H Serrated Finned Tube features a robust two-part structure:

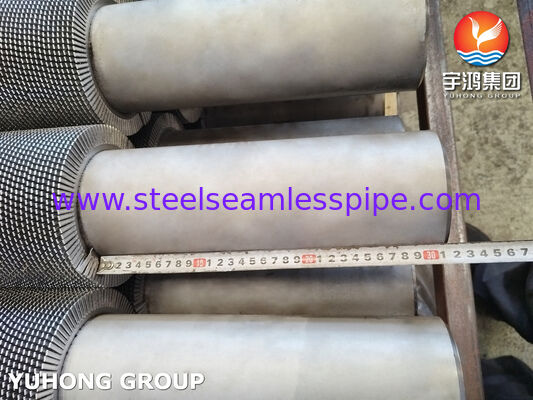

- Base Tube: Seamless stainless steel pipe made from ASTM A312 TP304H, providing excellent creep resistance and high-temperature strength.

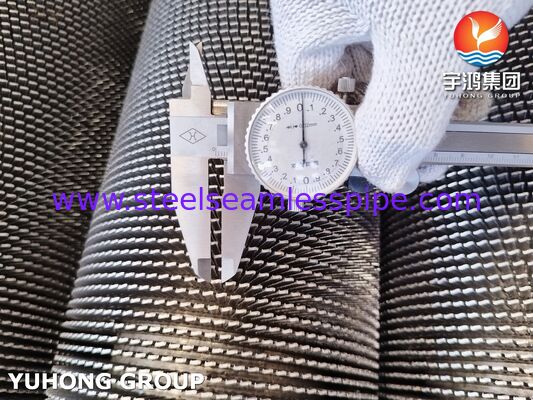

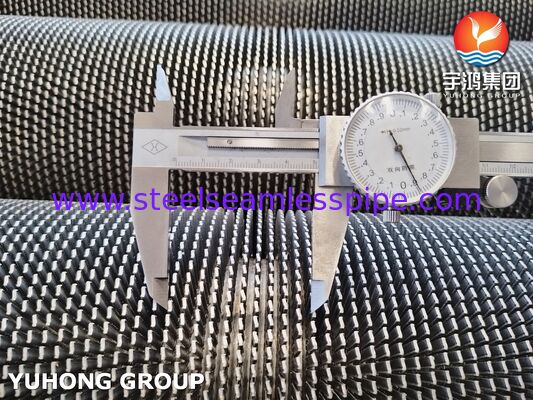

- Fins: Serrated spiral fins (typically carbon steel or stainless steel strip) that are precision-cut with notches to create the characteristic sawtooth profile.
The manufacturing process uses advanced high-frequency welding (HFW) technology. The serrated fin strip is helically wound around the rotating base tube under controlled tension, and high-frequency electromagnetic induction instantly creates a strong metallurgical bond without filler material. This “embedded-style” welding ensures zero gaps, vibration resistance, and long service life even under thermal cycling. The result is a fin-to-tube bond strength exceeding 90% of the base material’s tensile strength.
Chemical Composition of ASTM A312 TP304H Base Tube
The high-carbon content (0.04–0.10%) in TP304H enhances creep and rupture strength at elevated temperatures compared to standard TP304. Below is the precise chemical composition per ASTM A312:
| Element |
Content (%) |
| Carbon (C) |
0.04 – 0.10 |
| Manganese (Mn) |
≤ 2.00 |
| Silicon (Si) |
≤ 0.75 |
| Phosphorus (P) |
≤ 0.045 |
| Sulfur (S) |
≤ 0.030 |
| Chromium (Cr) |
18.0 – 20.0 |
| Nickel (Ni) |
8.0 – 11.0 |
| Nitrogen (N) |
≤ 0.10 (optional) |
| Iron (Fe) |
Balance |
This composition ensures outstanding oxidation resistance up to 870°C (1600°F) and superior performance in high-pressure steam or flue gas environments.
Dimension Tolerance Range of ASTM A312 TP304H Serrated Finned Tube
All base tubes are supplied according to ASTM A312 tolerances. Custom fin specifications (fin height, pitch, thickness) are available upon request. Typical base tube tolerances include:
| Parameter |
Tolerance Range |
| Outside Diameter (OD) |
±0.75% or ±0.015 in (whichever is greater) |
| Wall Thickness |
±12.5% |
| Length |
±0.25 in (6.35 mm) or as agreed |
| Fin Height |
±0.5 mm |
| Fin Pitch |
±1 fin per meter |
| Fin Thickness |
±0.1 mm |
These tight tolerances guarantee perfect fit in heat exchanger bundles and consistent thermal performance.
Performance Advantages of ASTM A312 TP304H Serrated Finned Tube
The serrated design creates controlled turbulence in the airflow, breaking the boundary layer and boosting the convective heat transfer coefficient by 15–25% over solid fins. Key advantages include:
- Higher Heat Transfer Efficiency: Serrations increase effective surface area and promote vortex shedding for better gas-side heat transfer.
- Reduced Fouling & Easier Cleaning: Notched edges minimize dust/ash buildup, extending maintenance intervals.
- Excellent High-Temperature Resistance: TP304H base tube maintains structural integrity under creep conditions up to 870°C.
- Strong Corrosion Resistance: Superior to carbon steel in acidic or oxidizing flue gases.
- Lower Pressure Drop: Optimized fin geometry reduces fan power consumption by up to 20%.
- Vibration & Fatigue Resistance: High-frequency weld ensures zero fin loosening even in high-velocity gas streams.
Detailed Application Fields of ASTM A312 TP304H Serrated Finned Tube
Our ASTM A312 TP304H Serrated Finned Tubes are widely used in:
- Boilers & Waste Heat Recovery: Economizers, superheaters, and air preheaters in power plants and steel mills.
- Petrochemical & Refinery Heat Exchangers: High-temperature process gas cooling and steam generation.
- Air-Cooled Condensers & Radiators: HVAC, gas turbines, and compressor aftercoolers.
- Incinerators & Flue Gas Treatment: Municipal waste-to-energy plants and industrial exhaust systems.
- Chemical Processing: High-pressure reactors and distillation columns requiring stainless steel reliability.
The material’s high-carbon austenitic structure makes it especially suitable for continuous operation above 500°C where standard 304 would suffer carbide precipitation.
Why Choose Us: Our Company Advantages and Professional Experience
With 12+ years specializing in finned tube export, our factory holds ISO 9001, ASME, and PED certifications. We produce over 500 tons of serrated finned tubes monthly and have supplied projects in 28 countries, including Europe, Middle East, Southeast Asia, and North America. Our advantages:
- Full Custom Capability: From 19 mm to 219 mm base tube OD with any fin density.
- Strict Quality Control: 100% ultrasonic weld inspection, hydrostatic testing, and third-party (SGS/BV) certification.
- Competitive Lead Time: Standard orders ship in 15–25 days; emergency orders in 7–10 days.
- Technical Support: Free heat transfer calculations, CAD drawings, and material selection guidance.
- One-Stop Service: From mill test certificates to ocean/air freight and after-sales technical support.
Ready to enhance your heat exchanger efficiency with reliable ASTM A312 TP304H Serrated Finned Tubes? Contact me today for a competitive quotation, detailed drawings, or samples. We look forward to becoming your long-term strategic supplier.
