ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	YUHONG
Certificação:	ASME, ABS, DNV-GL , BV, LR , KR, CCS, PED, TUV, ISO9001, AD2000
Número do modelo:	Tipo AES

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1set
Preço:	1--1000000 USD
Detalhes da embalagem:	Requisitos/ caixa de madeira/ pacote/ pacote de ferro com tampa de plástico
Tempo de entrega:	45 a 150 dias
Termos de pagamento:	T/T, L/C à vista
Habilidade da fonte:	60 conjuntos/mês

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (290)

Tubo sem emenda de aço inoxidável (277)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (29)

Tubo de agulha (107)

Tubos de barbatanas (631)

Trocador de calor (17)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (116)

defletor do permutador de calor (36)

Refrigerador de ar (8)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (114)

Tubulação da liga de níquel (261)

Tubo da liga de níquel (79)

Tubo da liga de cobre (227)

Tubo do aço de liga (184)

Tubo do titânio (10)

tubo recozido brilhante (153)

Tubo de caldeira (145)

encaixe de aço (804)

Flange de aço (590)

Outros (391)

Partes de revestimento (7)

Descrição de produto detalhada

Padrão:	Tema "R" Ed.99 Tipo: Aes	Arranjo de fluxo:	Passagem única
Concha:	A516	Tubos:	SA214
teste:	Rachaduras induzidas por hidrogênio "D"
Destacar:	ASME certified vacuum condenser , second-stage condenser for lubricant oil , solvent refining heat exchanger

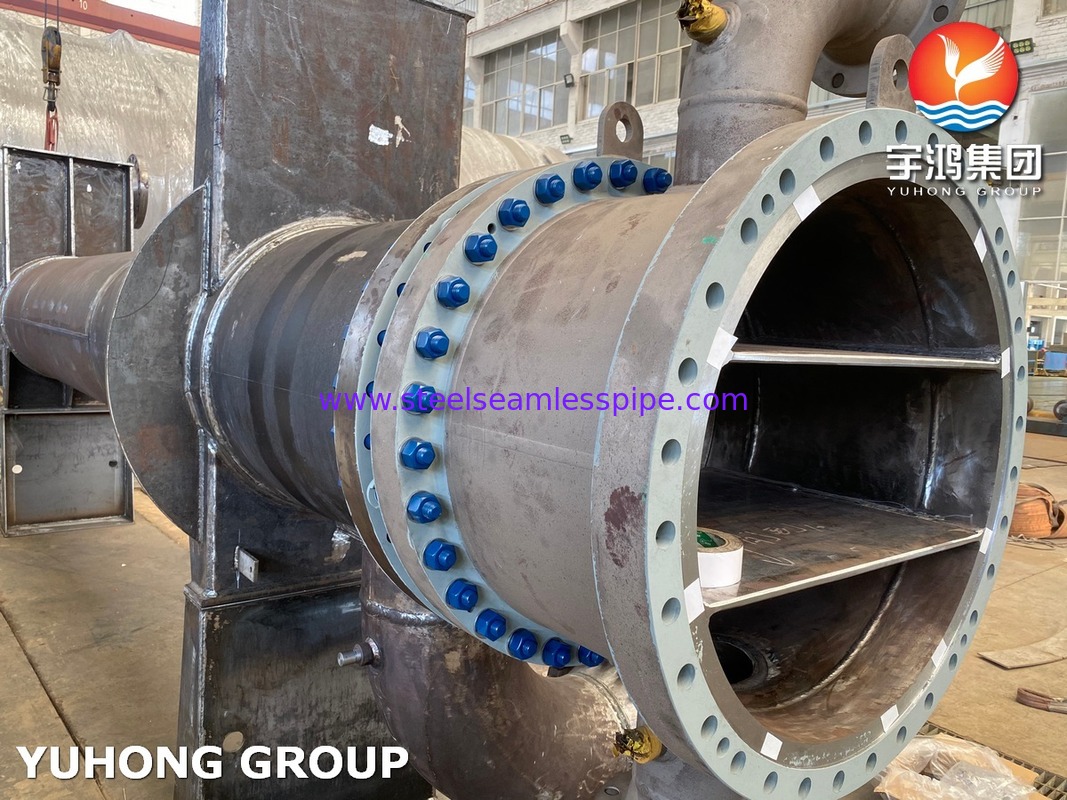

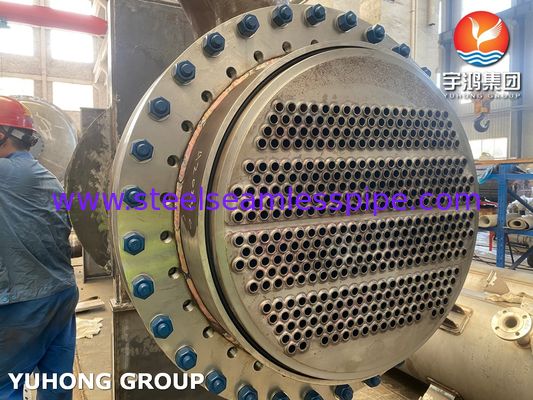

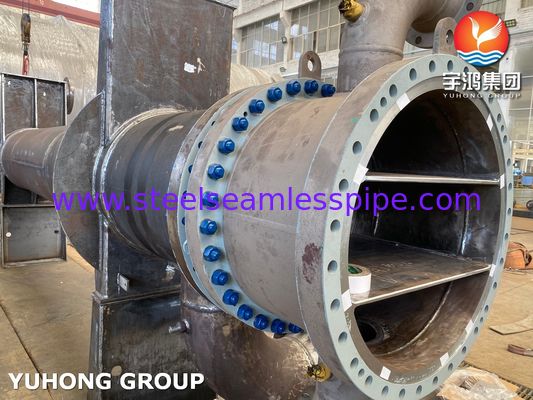

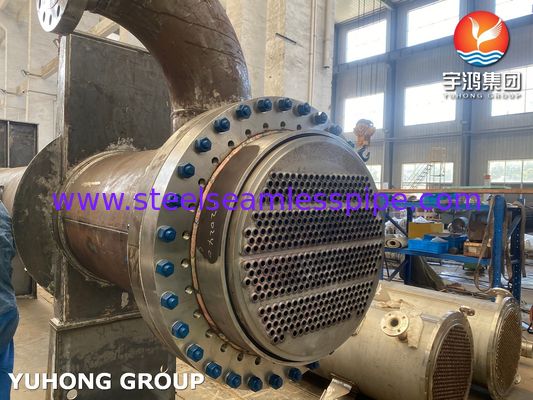

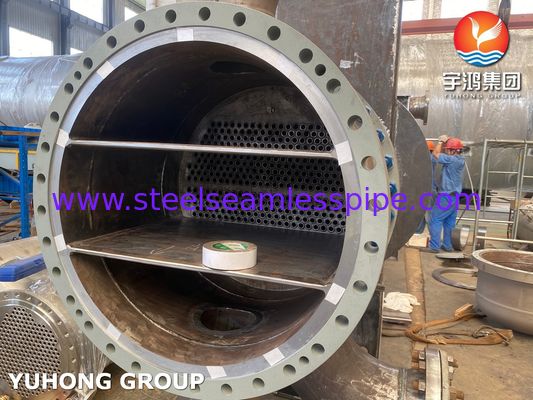

ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit

YUHONG is a national high-tech enterprise specializing in the design, manufacture, and service of high-end pressure vessels and heat exchange equipment. With over two decades of industry experience, we hold numerous international and domestic certifications, including the ASME "U" stamp and China's Class A1/A2 Pressure Vessel Manufacturing License. Adhering to the business philosophy of "quality first, technology at the core, and customer-centric," we are committed to providing safe, efficient, and reliable process equipment solutions for the global petrochemical, fine chemical, power energy, and environmental protection industries. We are honored to provide high-performance heat exchangers for your project.

Second-Stage Vacuum Condenser Heat Exchanger Materials List

POS.	Description
POS.	Description
1	FIXED TUBESHEET
2	FLOATING TUBESHEET
3	TUBES TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=3048
4	BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM
5	BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM
6	SUPPORT PLATE SA-36 PLATE 16mm (5/8"), 806.2MM
7	TIE RODS SA-36 BAR Ø1/2", L=2883MM
8	HEX NUT SA-194-2M Ø1/2" "UNC" THREAD
9	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=502MM
10	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1507.5MM
11	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1262MM
12	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 747.5MM
13	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 1537.5MM
14	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=777.5MM
15	GASKET PLATE SA-36 PLATE 6.3mm (1/4"), 58x1573MM
16	SLIDING PLATE SA-36 PLATE 12.5mm (1/2"), 74x2850MM
17	PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM
18	PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM
19	SQUARE PLATE SA-36 Ø6.3mm (1/4"), L=515MM
20	HEADLESS SLOTTED PLUG AISI-304 Ø3/4" "UNC" THREAD, L=30MM
21	EYE BOLT DIN 580 "UNC" THREAD, 3/4INCHx30MM
22	IDENTIFICATION PLATE AISI-304 PLATE 1.5mm, 35x75MM
23	STOPPER SA-36 PLATE 19mm (3/4"), 37x40MM

HIC Testing and the "HIC D" Grade, Second-Stage Vacuum Condenser

HIC stands for Hydrogen Induced Cracking. It is a standardized laboratory corrosion test designed to evaluate the resistance of steel to internal cracking caused by hydrogen atoms penetrating the metal in a wet H₂S-containing acidic environment. The test is typically performed according to international standards such as NACE TM0284 or ISO 15156.

The "D" means the material must pass the most stringent assessment. The standard acceptance criteria for a "D" grade are typically as follows (exact values are subject to the project specification):

•Crack Length Ratio (CLR) ≤ 5%

•Crack Thickness Ratio (CTR) ≤ 1.5%

•Crack Sensitivity Ratio (CSR) ≤ 0.5%

In some extremely severe service conditions, the specification may require all three indices to be 0%, meaning no detectable cracking is permitted.

ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit 0
