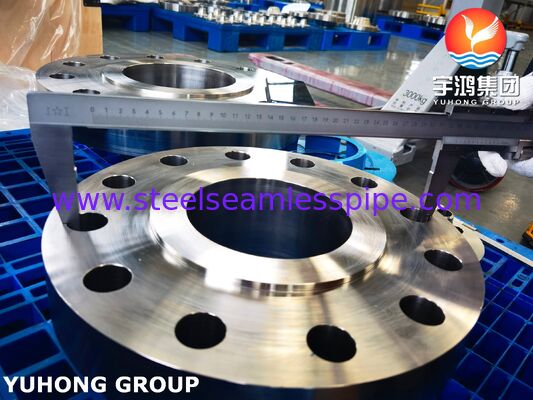

ASTM B564 UNS N10276 / Hastelloy C276 Weld Neck Flange, Raised Face (RF) Class 150/300/600, For Seawater Desalination

Detalhes do produto:

Lugar de origem:	China
Marca:	YUHONG
Certificação:	PED 4.3 (2014/68/EU) / CE / ISO 9001 / EAC
Número do modelo:	ASTM B564 Hastelloy C276(UNS N10276)

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 unidade
Preço:	Negociável
Detalhes da embalagem:	Caixa ou palete de madeira PLY
Tempo de entrega:	Depende da quantidade
Termos de pagamento:	T/T & L/C na vista

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (327)

Tubo sem emenda de aço inoxidável (322)

Tubulação de aço inoxidável frente e verso (134)

Tubo de aço inoxidável frente e verso (36)

Tubo de agulha (152)

Tubos de barbatanas (698)

Trocador de calor (24)

tubo do permutador de calor (456)

Pacote de tubos de trocador de calor (46)

Permutador de calor Tubesheet (124)

defletor do permutador de calor (39)

Refrigerador de ar (10)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (61)

Tubo soldado de aço inoxidável (130)

Tubulação da liga de níquel (271)

Tubo da liga de níquel (96)

Tubo da liga de cobre (247)

Tubo do aço de liga (208)

Tubo do titânio (20)

tubo recozido brilhante (173)

Tubo de caldeira (151)

encaixe de aço (855)

Flange de aço (655)

Outros (404)

Partes de revestimento (8)

Descrição de produto detalhada

Padrão::	ASTM B564, ASME B16.5/B16.47	Material:	Hastelloy C276 / UNS N10276 / 2.4819
Dimensão:	1/2″ NB A 60″ NB（DN15 A DN1500)	Classe de pressão:	Classe 150, 300, 600, 900, 1500, 2500 / PN6-PN64
Tratamento térmico:	SOLUÇÃO RECOZIDA	Tipo de face:	Cara aumentada (RF)

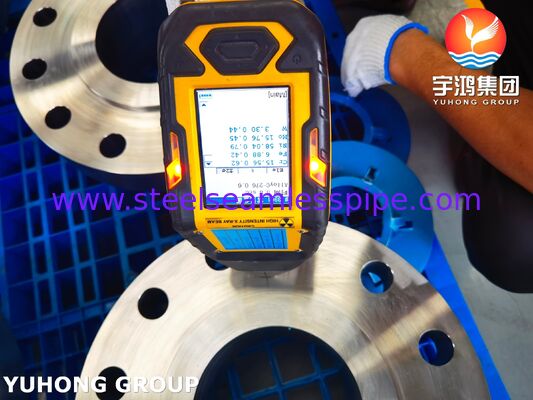

Inspeção::	UT, MT, PMI, PT	Aplicações comuns:	Indústria de processamento químico, Tubulações em ambientes corrosivos, Trocadores de calor e reator
Destacar:	Hastelloy C276 weld neck flange , ASTM B564 UNS N10276 flange , Seawater desalination steel flange

ASTM B564 UNS N10276 / Hastelloy C276 Weld Neck Flange, Raised Face (RF) Class 150/300/600, For Seawater Desalination

Introduction of ASTM B564 UNS N10276 / Hastelloy C276 Weld Neck Flange

Our Hastelloy C276 (UNS N10276) Weld Neck Flanges are manufactured in accordance with ASTM B564 and ASME B16.5/B16.47.

This nickel‑molybdenum‑chromium alloy provides excellent resistance to uniform corrosion, pitting, crevice corrosion, and stress corrosion cracking in extreme environments. Forged, solution annealed, and strictly inspected, our WNRF flanges feature high mechanical strength, good weldability, and long service life.

They are widely used in oil & gas, refinery, petrochemical, chemical processing, desalination, and flue gas desulfurization system. YUHONG can supply full sizes and pressure classes with EN 10204 3.1/3.2, PMI, NDT, and NACE MR0175 certifications available.

I. Applicable Standards & Basic Information of ASTM B564 Hastelloy C276 Weld Neck Flange

Item	Specification
Material Standard	ASTM B564 / ASME SB564 (Nickel Alloy Forgings Standard)
Flange Standard	ASME B16.5 (≤24 inches), ASME B16.47 Series A/B (>24 inches), DIN, EN1092-1, etc.
Material Grade	UNS N10276 / WNr. 2.4819 / Hastelloy C276
Type	Weld Neck (WN) / Raised Face (RF)
Size Range	1/2″ NB to 60″ NB (DN15 to DN1500)
Pressure Class	Class 150, 300, 600, 900, 1500, 2500 / PN6–PN64

II. Chemical Composition (ASTM B564 / UNS N10276)

Element	Content (%)	Function
Nickel (Ni)	Balance (≥50.99)	Base element, provides fundamental corrosion resistance
Molybdenum (Mo)	15.00 – 17.00	Resists reducing media (hydrochloric acid, sulfuric acid); enhances pitting resistance
Chromium (Cr)	14.50 – 16.50	Forms protective oxide film; resists oxidizing media (nitric acid, wet chlorine)
Iron (Fe)	4.00 – 7.00	Provides strength
Tungsten (W)	3.00 – 4.50	Enhances resistance to localized corrosion (pitting/crevice corrosion)
Cobalt (Co)	≤ 2.50	High-temperature stability
Carbon (C)	≤ 0.010	Ultra-low carbon content prevents carbide precipitation during welding, avoiding intergranular corrosion

III. Mechanical Properties (Minimum Values at Room Temperature)

Property	Value	Standard Requirement
Tensile Strength	≥ 690 MPa (100 ksi)	ASTM B462 requires ≥ 690 MPa
Yield Strength (0.2% offset)	≥ 283 MPa (41 ksi)	ASTM B462 requires ≥ 283 MPa
Elongation	≥ 40%	Excellent ductility, easy to form and machine
Density	8.89 g/cm³	—
Melting Point	Approx. 1370 °C	—
Hardness	≤ 100 HRB / ≤ 217 HB	—

Key Performance Advantages of ASTM B564 Hastelloy C276 Weld Neck Flange

Corrosion Resistance

- Resists strong acids (HCl, H₂SO₄, H₃PO₄) and chloride-induced pitting, crevice corrosion, and SCC. PREn ~69, far exceeding stainless steel.
- Tungsten (W) addition ensures stability in mixed acid environments.

Thermal Stability

- Service range: -196°C to 1040°C.
- Ultra-low carbon allows welding without post-weld heat treatment (PWHT) and eliminates intergranular corrosion risk.

Mechanical Connection

- Weld Neck (WN): Tapered neck ensures smooth stress transition and high fatigue resistance—ideal for high-pressure, high-temperature, and cyclic conditions.
- Raised Face (RF): Universal sealing compatible with various gaskets (e.g., spiral wound, graphite).

Typical Application Industries

Industry	Specific Applications
Chemical & Petrochemical	Reactors, heat exchangers, acid transfer lines, acetic acid/chloride production units
Oil & Gas	Offshore platforms, sour gas (H₂S-containing) pipelines, subsea piping systems
Pollution Control	Flue gas desulfurization (FGD) systems, waste incineration plants, industrial gas treatment
Pharmaceutical & Food	CIP (Clean-in-Place) / SIP (Sterilize-in-Place) systems requiring high purity
Marine Engineering	Seawater cooling systems, ballast water systems, desalination plants
Nuclear Power	Nuclear fuel reprocessing, radioactive waste treatment systems
