Heat Exchanger Tube Bundle For Oil Refinery Project in Saudi Arabia, ASME SA213 TP316L heat Exchanger with ASME SA516 Gr.70 Tube Sheet

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	YUHONG -ASME -BPVC-VIII
Certificação:	ASME U, ASME R, ASME NB , ASME PP , ASME S
Número do modelo:	PERMUTADOR DE CALOR TEMA: AES, BET, BES, CHX, AET, BEU

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	10000 ~ 5M usd
Detalhes da embalagem:	Caixa/pálete de madeira da dobra
Tempo de entrega:	75---180 dias
Termos de pagamento:	L/c, t/t
Habilidade da fonte:	600 conjuntos por ano

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (290)

Tubo sem emenda de aço inoxidável (277)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (29)

Tubo de agulha (107)

Tubos de barbatanas (631)

Trocador de calor (17)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (116)

defletor do permutador de calor (36)

Refrigerador de ar (8)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (114)

Tubulação da liga de níquel (261)

Tubo da liga de níquel (79)

Tubo da liga de cobre (227)

Tubo do aço de liga (184)

Tubo do titânio (10)

tubo recozido brilhante (153)

Tubo de caldeira (145)

encaixe de aço (804)

Flange de aço (590)

Outros (391)

Partes de revestimento (7)

Descrição de produto detalhada

Padrão de pacote de tubos do trocador de calor:	TEMA, API 660, API 663	Tipo de trocador de calor:	AES, BET, BES, AET, CHX, BEU
Detalhes do tubo do pacote de tubos do trocador de calor:	ASME SA213 TP316L 19,05X2,77X7315MM	Folha de tubo do pacote de tubos do trocador de calor:	ASME SA516 GR.70 + SS316L 3MM
Canal de pacote de tubos:	A norma ASME SA240 SS316L	Flange de circunferência de feixe de tubos:	ASME SA182 F316L
Bocal de pacote de tubos:	Flange de pescoço de solda longo ASME SA182 F316L
Destacar:	ASME SA213 TP316L heat exchanger tube , ASME SA516 Gr.70 tube sheet heat exchanger , oil refinery heat exchanger tube bundle

Heat Exchanger Tube Bundle For Oil Refinery Project in Saudi Arabia, ASME SA213 TP316L heat Exchanger with ASME SA516 Gr.70 TubeSheet

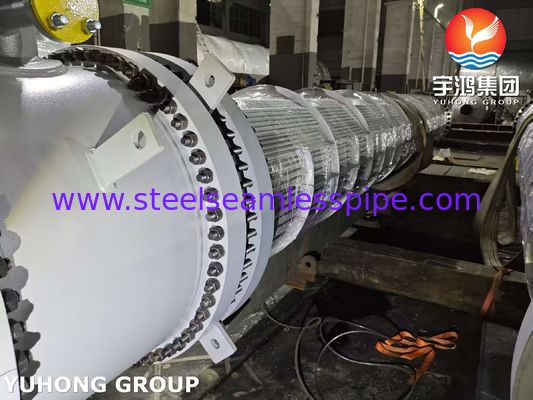

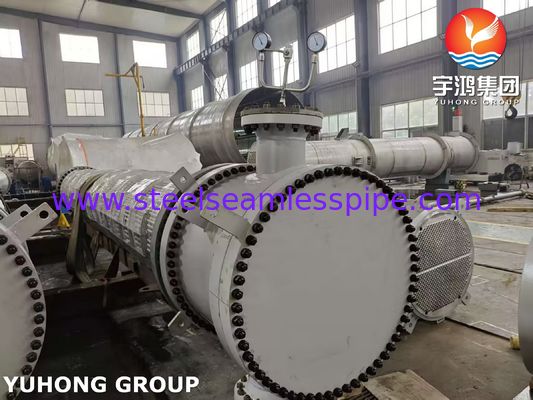

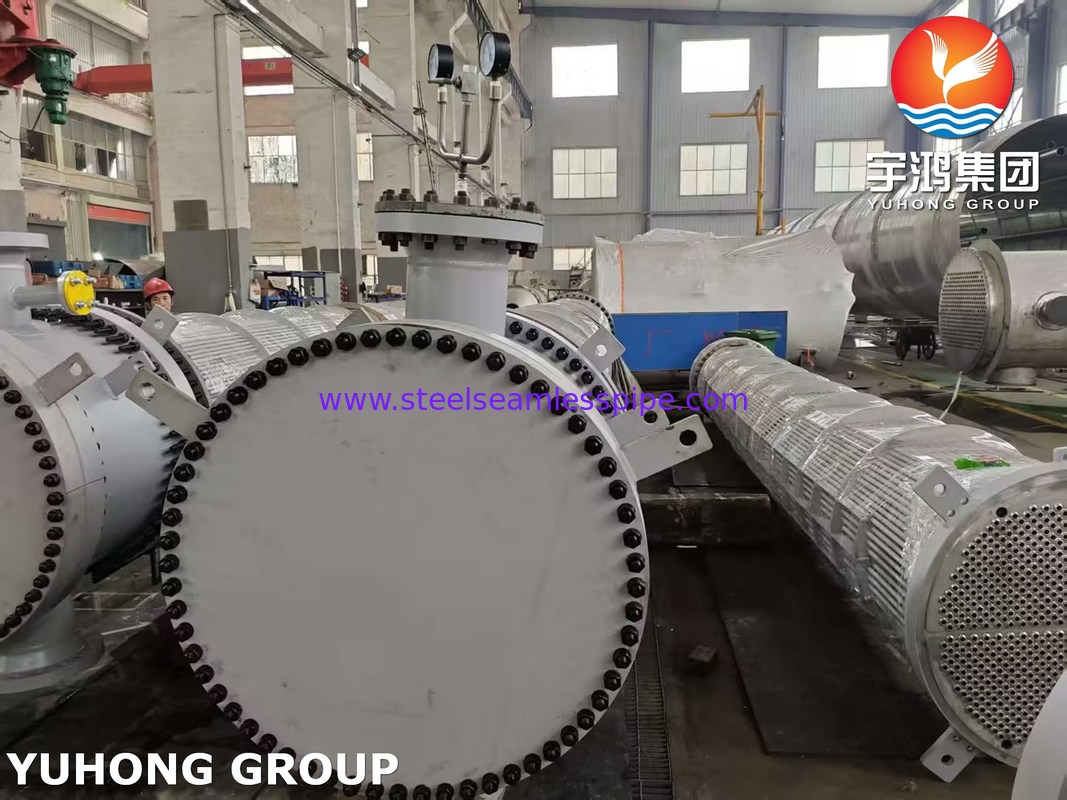

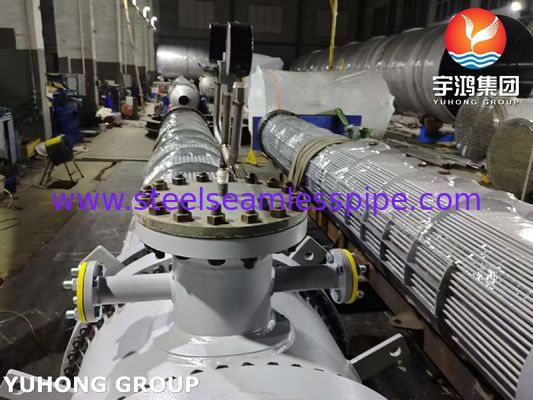

Yuhong Group start to support this project from 2023 Dec., the project end user below Aramco & Total join venture company : Satorp, due to old design has problem , final the old heat exchangers face leak during the application , and then Satorp company sent the new request with their new idea to replace the heat exchanger tube bundle , change the heat exchanger tube from ASME SA179 to ASME SA213 TP316L , and Tubeshee change from ASME SA516 GR.70 to ASME SA516 GR.70 + both sides with 3mm cladding SS316L ,our engineer team rechecked thermal calculation , GA drawing , Mechanical Calculation , Final we submit full set technical documents to Satorp , and all other procedure documents & ITP, WPS, WPQ, PQR, all depend on ARAMCO system , after 14 months documents adjust , final we match Satorp company documents request , and we also i becamse the AVL company in China to make service for Satorp .

1. Key Applications of Heat Exchanger Tube Bundles

A. Oil & Gas Industry

Crude Oil Refining: Used in pre-heaters, condensers, and coolers for processes like distillation, hydrocracking, and catalytic reforming.
- Example: Cooling hydrocarbon streams in a shell-and-tube condenser after distillation.
Natural Gas Processing: Tube bundles in gas coolers remove heat from compressed natural gas (CNG) or liquefied natural gas (LNG).

B. Chemical & Petrochemical Plants

Reactor Cooling/Heating: Maintain temperature control in exothermic/endothermic reactions.
Acid/Alkali Heat Exchange: Tube bundles made of titanium or Hastelloy resist corrosion from aggressive fluids (e.g., sulfuric acid, chlorinated solvents).

C. Power Generation

Steam Condensers: Convert turbine exhaust steam back to water in thermal power plants.
Feedwater Heaters: Preheat boiler feedwater using steam extracted from turbines (improves plant efficiency).

D. HVAC & Refrigeration

Chillers: Tube bundles in evaporators/condensers transfer heat between refrigerants and water/air.
District Heating: Heat exchangers transfer thermal energy from centralized plants to residential/commercial buildings.

E. Food & Beverage Industry

Pasteurization: Stainless steel tube bundles heat/cool products like milk, juices, or beer while maintaining hygienic standards.
CIP (Clean-in-Place) Systems: Designed for easy cleaning to prevent bacterial growth.

F. Marine & Offshore

Seawater Cooling: Titanium tube bundles handle corrosive seawater in shipboard cooling systems.
LNG Carriers: Tube bundles in cryogenic heat exchangers manage ultra-low temperatures (-160°C).

2. Tube Bundle Configurations

The choice of design depends on thermal performance, maintenance needs, and cost:

Type	Application	Advantages
Fixed Tube Sheet	Stable temperature/pressure (e.g., HVAC, light chemical processes).	Simple design, low cost.
U-Tube Bundle	High thermal expansion (e.g., steam-to-water exchangers).	Absorbs thermal stress; no expansion joint.
Floating Head	Large temperature differences (e.g., refinery crude oil pre-heaters).	Easy maintenance; handles expansion.
Multi-Pass	High heat transfer efficiency (e.g., chemical reactors, boilers).	Enhances turbulence and heat transfer.

3. Technical Considerations

a. Material Selection

Stainless Steel (SS316/SS304): General-purpose fluids (water, oils).
Titanium/Titanium Alloys: Seawater, chlorides, or acidic environments.
Nickel Alloys (Inconel, Monel): High-temperature/pressure or hydrogen-rich fluids.
Cupronickel (90/10 or 70/30): Marine applications (anti-fouling).

b. Tube Layout & Pitch

Triangular Pitch: Maximizes tube count for compact designs (common in high-pressure systems).
Square/Rotated Square Pitch: Easier cleaning (used in fouling-prone fluids).

c. Heat Transfer Optimization

Internal Turbulators: Fins or twisted tapes inside tubes to enhance turbulence.
External Low-Fin Tubes: Increase surface area for shell-side heat transfer.

d. Fouling Mitigation

Electropolishing: Reduces surface roughness to prevent particle deposition.
Online Cleaning Systems: Installations like AutoTap to remove scale without disassembly.

4. Industry Standards

ASME BPVC Section VIII: Governs design and fabrication for pressure boundaries.
TEMA (Tubular Exchanger Manufacturers Association) Standards: Classify exchangers into TEMA R, C, or B .
API 660: Specific requirements for shell-and-tube exchangers in oil and gas.

Heat Exchanger Tube Bundle For Oil Refinery Project in Saudi Arabia, ASME SA213 TP316L heat Exchanger with ASME SA516 Gr.70 Tube Sheet 0
