ASTM A182 F51 Duplex Stainless Steel Flange B16.5 for Industrial Pipeline

Detalhes do produto:

Lugar de origem:	China
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Número do modelo:	ASTM A182 F51

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1pcs
Preço:	Negociável
Detalhes da embalagem:	Bachar com tampa de plástico/caixa de madeira
Tempo de entrega:	7 dias
Termos de pagamento:	L/c, t/t

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (290)

Tubo sem emenda de aço inoxidável (277)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (29)

Tubo de agulha (107)

Tubos de barbatanas (631)

Trocador de calor (17)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (116)

defletor do permutador de calor (36)

Refrigerador de ar (8)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (114)

Tubulação da liga de níquel (261)

Tubo da liga de níquel (79)

Tubo da liga de cobre (227)

Tubo do aço de liga (184)

Tubo do titânio (10)

tubo recozido brilhante (153)

Tubo de caldeira (145)

encaixe de aço (804)

Flange de aço (590)

Outros (391)

Partes de revestimento (7)

Descrição de produto detalhada

Nome do produto:	Flange de aço inoxidável frente e verso	Padrão:	ASTM A182
Material:	F51	Ndt:	PT/UT
Tipo de flange:	Wn, então, bl, sw, espetáculo, ljp, orinfice	Embalagem:	Bachar com tampa de plástico/caixa de madeira
Aplicativo:	Petróleo e Gás/Química/Sistema de Refrigeração/Indústria de Celulose e Papel
Destacar:	ASTM A182 F51 duplex steel flange , B16.5 stainless steel flange , industrial pipeline steel flange

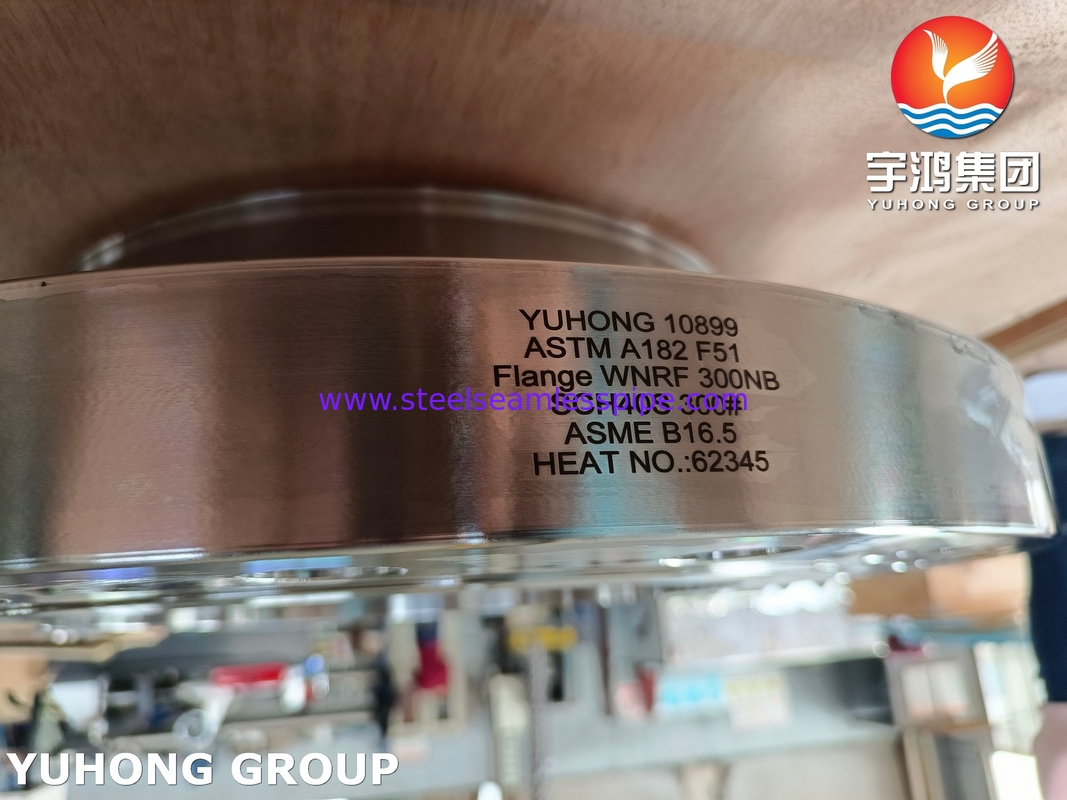

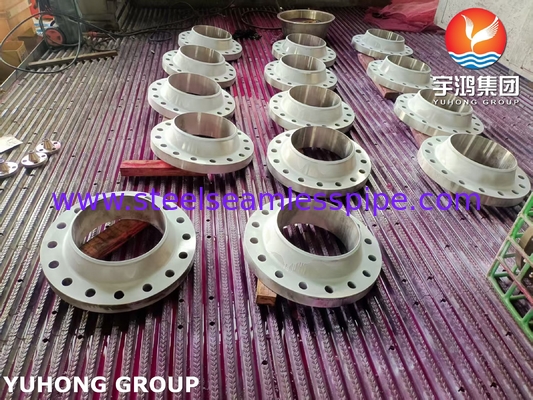

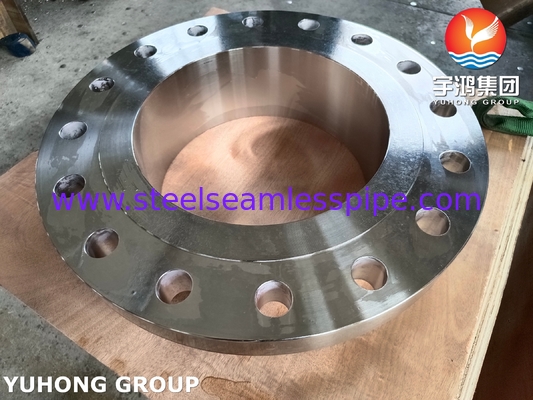

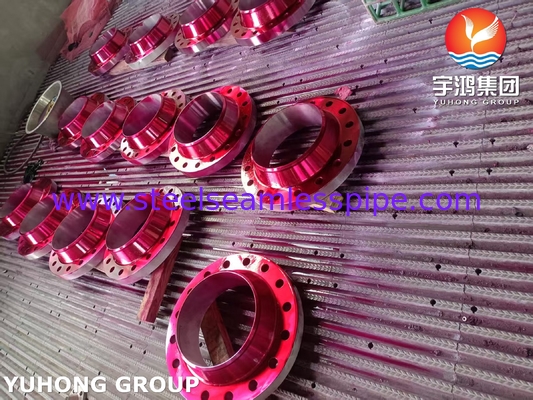

ASTM A182 F51 Duplex Stainless Steel Flange B16.5 for Industrial Pipeline

ASTM A182 specification covers forged low alloy and stainless steel piping fittings used in pressure systems, including flanges, fittings, valves, and similar parts that conform to specified dimensions or size standards. And it covers various grades of low-alloy steels as well as ferritic, martensitic, austenitic, and ferritic austenitic stainless steels. F51 is a duplex steel material grade code under the ASTM A182 standard. The more common common name is 2205 duplex steel, which comes from its typical chemical composition ratio of about 22% chromium and 5% nickel.

ASTM A182 F51 Duplex Stainless Steel Flange Heat Treatment

GRA.	UNS GRA.	Tensile Strength, min, ksi [MPa]	Yield Strength, min, ksi [MPa]B	Elongation in 2 in. [50 mm] or 4D, min, %
F51	S31803	90 [620]	60 [450]	25

ASTM A182 F51 Duplex Stainless Steel Flange Advantages

High strength
Excellent resistance to stress corrosion cracking (SCC)
Good corrosion resistance
Good weldability
Good toughness

ASTM A182 Duplex Stainless Steel Flange Chemical Composition

GRA.	CHEMICAL COMPOSITION % MAXIMUM
GRA.	C	MN	P	S	SI	CR	NI	MO	CU	N
F51	0.03	2.0	0.030	0.02	1.0	21.0-23.0	4.5-6.5	2.5-3.5	---	0.08-0.20
F53	0.03	1.2	0.035	0.02	0.8	24.0-26.0	6.0-8.0	3.0-5.0	0.5	0.24-0.32
F55	0.03	1.0	0.030	0.01	1.0	24.0-26.0	6.0-8.0	3.0-4.0	0.5-1.0	0.20-0.30

Nondestructive Testing and Quality Control for ASTM A182 F51 Duplex Stainless Steel Flanges

1.Liquid Penetrant Testing: This is almost mandatory and is used to detect surface defects in critical areas such as the flange sealing surface and grooves. Linear defects on the sealing surface are not permitted.

2.Ultrasonic Testing: Ultrasonic Testing (UT) is required for large or high-pressure flanges to detect internal defects.

3.Corrosion Testing: Intergranular corrosion testing is typically required to ensure proper heat treatment and the absence of chromium carbide precipitation.

4.Ferrite Content Measurement: A ferrite meter is used to ensure the ferrite content is within the ideal range of 35-55% to verify the effectiveness of the heat treatment.

5.Material Verification: A spectrometer is used to verify that the chemical composition meets the standard.

ASTM A182 F51 Duplex Stainless Steel Flange Main Application Areas

Oil and Gas Industry: Offshore platform equipment, oil and gas pipelines, and purification equipment.
Chemical and Petrochemical Industry: Reaction vessels, heat exchangers, and piping systems for transporting various acidic media.
Seawater and Brine Treatment: Desalination plants and ship piping systems.
Energy and Environmental Protection: Wastewater treatment equipment.
Pulp and Paper Industry: Containers and piping for handling corrosive chemicals.

ASTM A182 F51 Duplex Stainless Steel Flange B16.5 for Industrial Pipeline 0
