ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant，Precise for Hypodermic Needles, Medical Devices

Detalhes do produto:

Lugar de origem:	China
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Número do modelo:	Tubos capilares

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	10kg
Preço:	Negociável
Detalhes da embalagem:	Caixa de madeira / caixa de ferro / pacote com tampa de plástico
Tempo de entrega:	10-90 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	De acordo com o pedido do cliente

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (331)

Tubo sem emenda de aço inoxidável (322)

Tubulação de aço inoxidável frente e verso (134)

Tubo de aço inoxidável frente e verso (36)

Tubo de agulha (156)

Tubos de barbatanas (703)

Trocador de calor (28)

tubo do permutador de calor (458)

Pacote de tubos de trocador de calor (49)

Permutador de calor Tubesheet (125)

defletor do permutador de calor (39)

Refrigerador de ar (11)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (61)

Tubo soldado de aço inoxidável (132)

Tubulação da liga de níquel (273)

Tubo da liga de níquel (101)

Tubo da liga de cobre (250)

Tubo do aço de liga (210)

Tubo do titânio (20)

tubo recozido brilhante (172)

Tubo de caldeira (152)

encaixe de aço (860)

Flange de aço (659)

Outros (404)

Partes de revestimento (8)

Descrição de produto detalhada

Diâmetro externo:	0,3 mm 0,4 mm 0,5 mm	Nota:	SS304 304L 316 316L
Superfície da agulha:	Recozido Brilhante	Uso:	Procedimentos médicos
Comprimento:	Dependa do pedido do cliente	pacote:	CAIXA DA MADEIRA COMPENSADA, PACOTE
Destacar:	ASTM A269 SUS304 capillary tubes , corrosion resistant medical needle tubes , precise hypodermic needle tubing

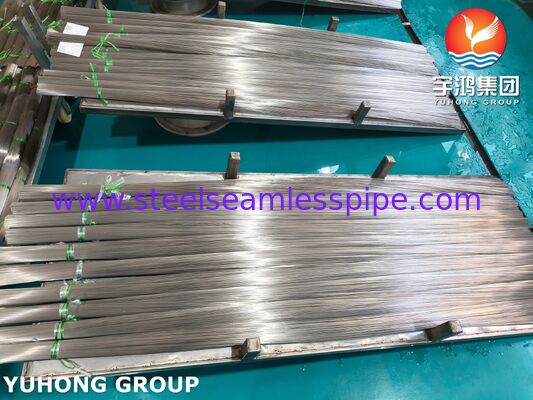

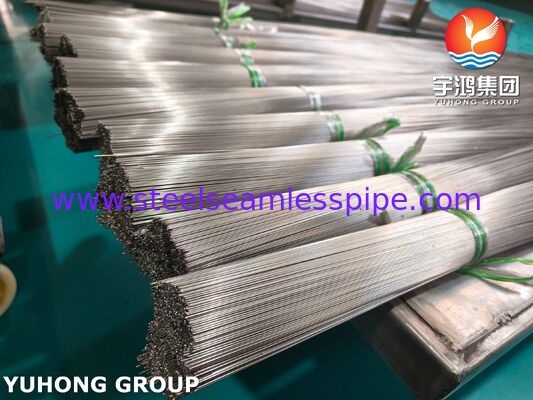

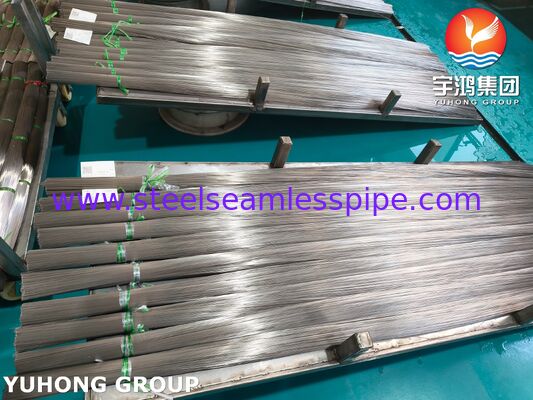

ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant,Precise for Hypodermic Needles, Medical Devices

ASTM A269 SUS304 medical capillary tubing is a precision micro-tube manufactured according to ASTM A269 standards, made of SUS304 stainless steel, and specifically designed for medical applications.

304 stainless steel is widely recognized for its good biocompatibility. Thanks to its excellent corrosion resistance and biocompatibility, capillary tubes play a crucial role in the medical field.

Medical Needle Application Selection Notes: TP304 is commonly selected for general medical needle applications requiring good strength, ductility, and corrosion resistance.

TP304L offers enhanced weldability due to its lower carbon content, making it ideal for welded needle assemblies where post-weld annealing is not performed.

304/304L Dual Certified tubing is also available, meeting both composition requirements, providing maximum flexibility for medical device manufacturing.

Let me know if you need additional data such as surface finish requirements (BA/EP) or dimensional tolerances for medical capillary tube applications.

Chemical Composition
Element	Grade: TP304 (wt%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Silicon (Si)	≤ 1.00
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Iron (Fe)	Balance

Mechanical Properties
Property	Value (min.)
Yield Strength (0.2% offset)	≥ 205 MPa (30 ksi)
Tensile Strength	≥ 515 MPa (75 ksi)
Elongation (in 2 inches / 50 mm)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Mechanical Properties Comparison (304 vs. 304L)
Property	TP304	TP304L
Yield Strength (min.)	205 MPa (30 ksi)	170 MPa (25 ksi)
Tensile Strength (min.)	515 MPa (75 ksi)	485 MPa (70 ksi)
Elongation (min.)	35%	35%

Applications:

Forceps and irrigation/suction tubes for laparoscopic and arthroscopic endoscopes, or as precision components of catheters and guidewires.

Inner cannulas for high-end injection needles, puncture needles, and insulin pump tubing, ensuring accurate.

Dental and Surgical Tools: Water/air supply tubing for dental handpieces, or as the rigid component of liposuction cannulas and surgical irrigation tubes.

In Vitro Diagnostic Equipment: Inside blood analyzers, biochemical analyzers, and other equipment, responsible for the precise and stable delivery of minute amounts of reagents or samples.

Medical Device Sensors: Protective sheaths for temperature probes and pressure sensors, isolating interference and ensuring accurate signal transmission.

ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant，Precise for Hypodermic Needles, Medical Devices 0
