ASME SB111 C71500 SMLS 70-30 Copper-Nickel Alloy Steel Tube, Seawater Corrosion Resistance

Detalhes do produto:

Lugar de origem:	China
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número do modelo:	A norma ASME SB111 C71500

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100kg
Preço:	Negociável
Detalhes da embalagem:	Caixa / pacote / pacote de madeira com madeira com tampa de plástico
Tempo de entrega:	15-20 dias úteis
Termos de pagamento:	, L/c, t/t
Habilidade da fonte:	Acordando a solicitação do cliente

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (308)

Tubo sem emenda de aço inoxidável (297)

Tubulação de aço inoxidável frente e verso (132)

Tubo de aço inoxidável frente e verso (33)

Tubo de agulha (134)

Tubos de barbatanas (672)

Trocador de calor (20)

tubo do permutador de calor (443)

Pacote de tubos de trocador de calor (40)

Permutador de calor Tubesheet (117)

defletor do permutador de calor (37)

Refrigerador de ar (9)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (58)

Tubo soldado de aço inoxidável (120)

Tubulação da liga de níquel (266)

Tubo da liga de níquel (92)

Tubo da liga de cobre (240)

Tubo do aço de liga (204)

Tubo do titânio (15)

tubo recozido brilhante (155)

Tubo de caldeira (151)

encaixe de aço (826)

Flange de aço (615)

Outros (401)

Partes de revestimento (7)

Descrição de produto detalhada

Nome do produto:	Tubo de aço de liga de níquel de cobre sem costura	Especificação:	ASME SB111
Material:	C71500	Tipo:	Sem costura
Superfície:	Recostado / polido brilhante	Aplicação:	Trocadores de calor, Tubulação, Tratamento de água do mar
Destacar:	ASME SB111 C71500 copper-nickel alloy tube , seawater corrosion resistant copper alloy tube , 70-30 copper-nickel seamless steel tube

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASME SB111 C71500 SMLS 70-30 Copper-Nickel Alloy Steel Tube, Seawater Corrosion Resistance

ASME SB111 C71500 is a seamless 70-30 copper-nickel alloy tube renowned for its superior seawater corrosion resistance. The addition of nickel and iron enables the formation of a dense, stable protective surface film, effectively resisting pitting, impingement attack, and biofouling. Designed for harsh marine environments, it is the ideal choice for heat exchanger tubing in ship condensers, power plant cooling systems, and desalination plants.

1.Chemical & Mechanical Properties

ASME SB111 C71500 Chemical Composition (%)
Cu	Ni	Pb	Fe	Zn	Mn
Rem	29.0%-33.0%	≤0.05%	0.4%-1.0%	≤1.0%	≤1.0%

Mechanical Properties

Code	Name	Tensile Strength min ksi	Yield Strength min ksi	Elongation in 2 in.,min %
O61	annealed	52	18
HR50 Wall thicknesses up to 0.048 in., incl	drawn and stress-relieved	72	50	12
HR50 Wall thicknesses over 0.048 in.	drawn and stress-relieved	72	50	15

Physical properties

Thermal Conductivity	Coefficient of Thermal Expansion	Modulus of Elasticity	Density
~29 W/m·K	16.2 x 10⁻⁶ /K	~156 GPa	8.94 g/cm³

2. Key Adventages

Superior Seawater Corrosion Resistance

Exhibits excellent resistance to corrosion in seawater and brackish water, effectively resisting pitting, crevice corrosion, and stress corrosion cracking.

Excellent Biofouling Resistance

The alloy surface inhibits the attachment and growth of marine organisms (such as barnacles, algae), reducing maintenance costs and maintaining heat exchange efficiency.

Good Mechanical and Fabrication Properties

Possesses high strength, good toughness, and ductility, making it easy for fabrication processes such as bending, welding, and forming.

Long Service Life

Capable of providing decades of reliable, trouble-free service life under correct operating conditions.

3. Key Applications

Shipbuilding & Marine Engineering: Ship condensers, heat exchangers, seawater cooling pipe systems.
Power Generation: Main condenser tubes and feedwater heater tubes for coastal and nuclear power plants.
Desalination Plants: Heat exchanger tubes and process piping in Multi-Stage Flash and Reverse Osmosis systems.
Offshore Oil & Gas: Subsea pipelines, platform cooling systems, firewater system piping.

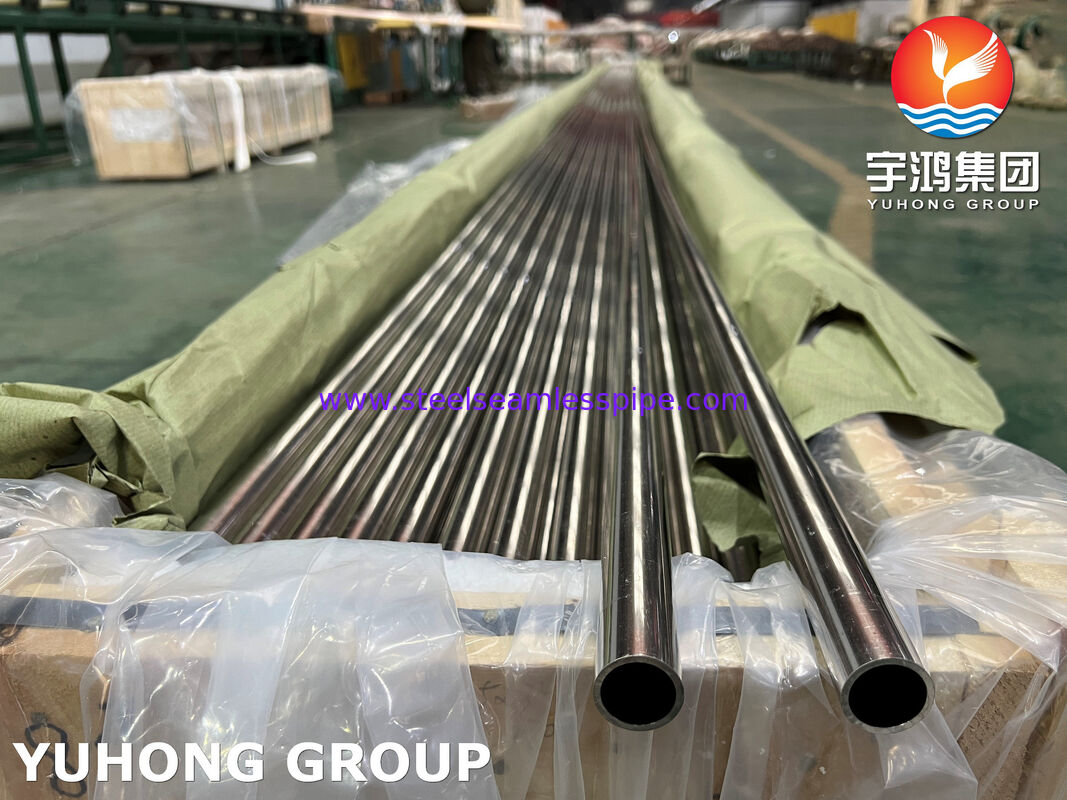

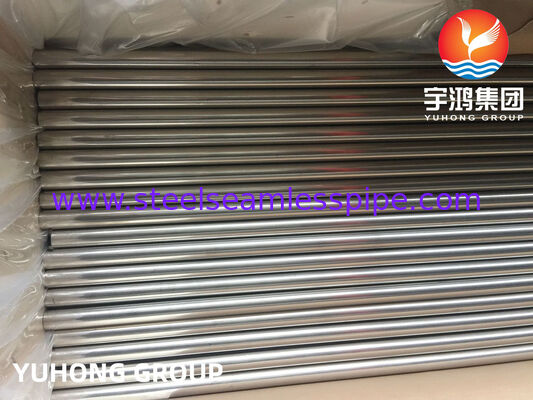

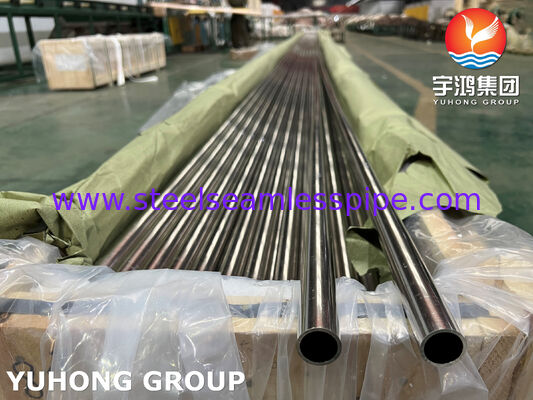

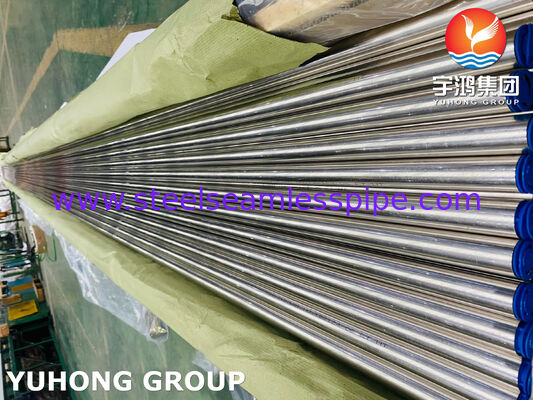

ASME SB111 C71500 SMLS 70-30 Copper-Nickel Alloy Steel Tube, Seawater Corrosion Resistance 0
