ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

Detalhes do produto:

Lugar de origem:	China
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Número do modelo:	ASME SB163

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	500 kg
Preço:	Depend
Detalhes da embalagem:	Caso de Wooden
Tempo de entrega:	30 a 65 dias
Termos de pagamento:	T/T, L/C
Habilidade da fonte:	1000tons/mês

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (290)

Tubo sem emenda de aço inoxidável (277)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (29)

Tubo de agulha (107)

Tubos de barbatanas (631)

Trocador de calor (17)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (116)

defletor do permutador de calor (36)

Refrigerador de ar (8)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (114)

Tubulação da liga de níquel (261)

Tubo da liga de níquel (79)

Tubo da liga de cobre (227)

Tubo do aço de liga (184)

Tubo do titânio (10)

tubo recozido brilhante (153)

Tubo de caldeira (145)

encaixe de aço (804)

Flange de aço (590)

Outros (391)

Partes de revestimento (7)

Descrição de produto detalhada

Produto:	Condensadores e tubos trocadores de calor	Material de tubos de condensadores e trocadores de calor:	Liga de níquel
Padrão de tubos de condensadores e trocadores de calor:	ASME SB163	Classe de tubos de condensadores e trocadores de calor:	N02201
Aplicação de tubos de condensadores e trocadores de calor:	Trocadores de calor/caldeiras/condensadores, etc.	Embalagem de tubos de condensadores e trocadores de calor:	Caso de Wooden
Destacar:	ASME SB163 nickel alloy tubes , N02201 seamless condenser tubes , nickel alloy heat exchanger tubes

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

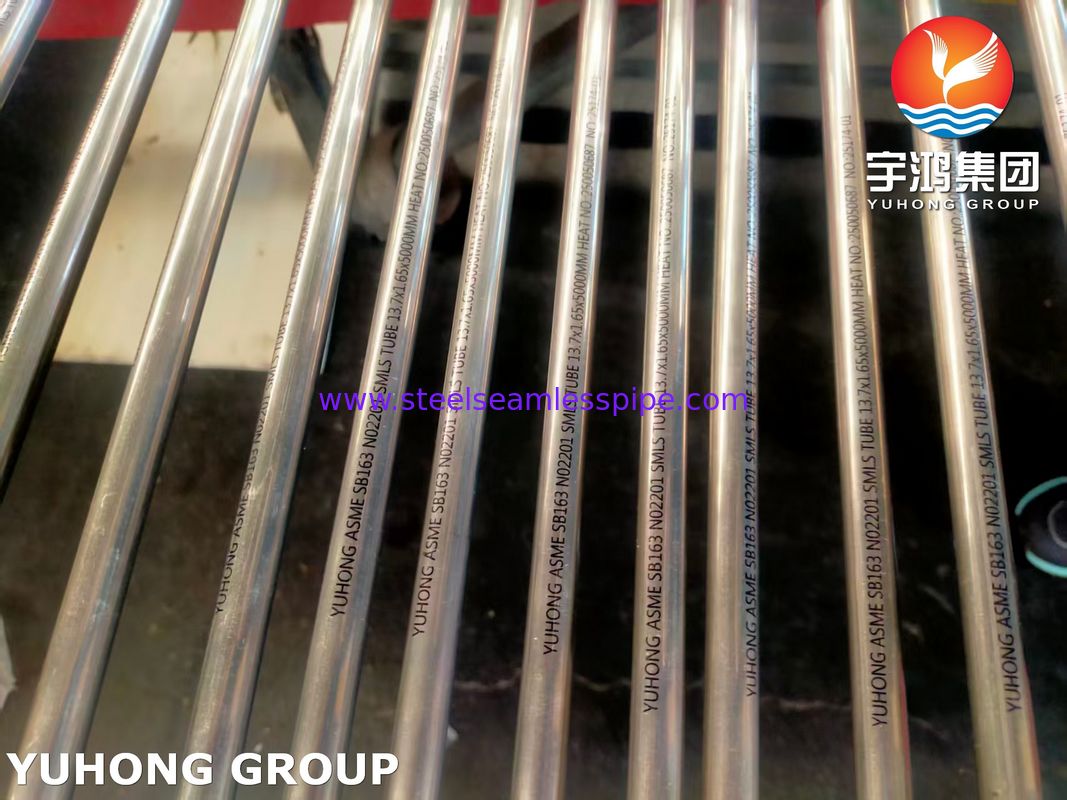

YUHONG Group can offer ASTM B163 / ASME SB163 N02201 SMLS nickel alloy tubes.

ASTM B163 / ASME SB163 is the standard specification for seamless nickel and nickel-alloy condenser and heat-exchanger tubes. N02201 (Alloy 201) likes N02200, it's a commercially pure nickel (99.0% min) known for its excellent resistance to corrosion, particularly in caustic environments, and its high thermal and electrical conductivity. Its seamless nature ensures reliability under pressure and in corrosive service.N02201 resists corrosion in a wide range of reducing and neutral media, including fresh water, natural waters, non-oxidizing salts, and alkaline solutions. It is particularly resistant to caustic alkalies.

N02201 maintains good strength and ductility from cryogenic temperatures up to moderately high temperatures. Alloy 201 has very low carbon content (<0.02%), which prevents carbide precipitation (sensitization) during welding and service, preserving its corrosion resistance in the heat-affected zones.

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 0

Chemical Composition % Alloy 201 / UNS N02201

Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur
99.0 min	0.25 max	0.40 max	0.35	0.02max	0.35	0.01
Nickel element shall be determined arithmetically by difference.

Mechanical Property Alloy 201 / UNS N02201

Condition	Tensile Strength min	Yield Strength min	Elongation (%)	Rockwell Hardness
Annealed	50ksi (345MPa)	28ksi (193MPa)	40 min.	/
Stress-relieved	60ksi (414MPa)	55ksi (379MPa)	15 min.	B62 max

SB163 N02201 tubes common applications include:

Caustic Evaporators and Concentrators
Tubes are used in heat exchangers that concentrate sodium hydroxide (NaOH) or potassium hydroxide (KOH) solutions from weak concentrations to 50% or even 73%. Stainless steel would corrode catastrophically in this service.

Chemical Processing Industry (CPI)
1.Organic Chlorination Processes: Handling chlorinated hydrocarbons and associated by-products like HCl.
2.Production of Plastics and Synthetic Fibers: Where corrosive catalysts or intermediates are present.
3.Fine Chemical and Pharmaceutical Synthesis: For reactors and heat exchangers handling aggressive media where purity is critical (nickel ions are less problematic than corrosion products from other metals).

Power Generation & Marine
1.Feedwater Heaters in Advanced Plants: Where water chemistry is highly controlled, and reliability is paramount.
2.Specialized Condensers: In geothermal plants or in coastal/offshore facilities where cooling water is highly aggressive, brackish, or polluted, and where chlorination is used for biofouling control.

Other Specialized Applications
1.HF Alkylation Units in oil refineries (for handling hydrogen fluoride).
2.Production and Handling of Fluorine and Fluorinated Compounds.
3.Sea Water Desalination Plants, particularly in the high-temperature brine heaters and sections with high chloride concentration.

Testing and Inspection

Hydrostatic Test (or Nondestructive Electric Test)

Flattening Test,Reverse Flattening Test

Flaring Test

Hardness Test

Tension Tests

Chemical Analysis
