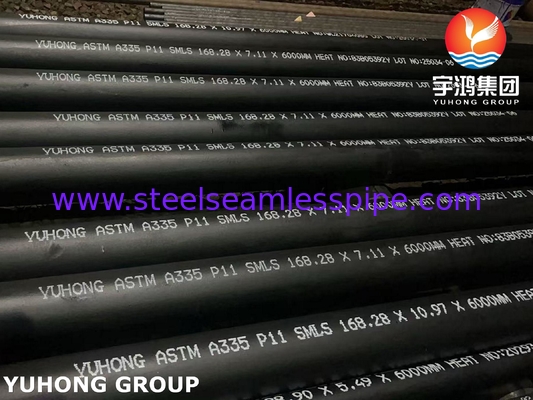

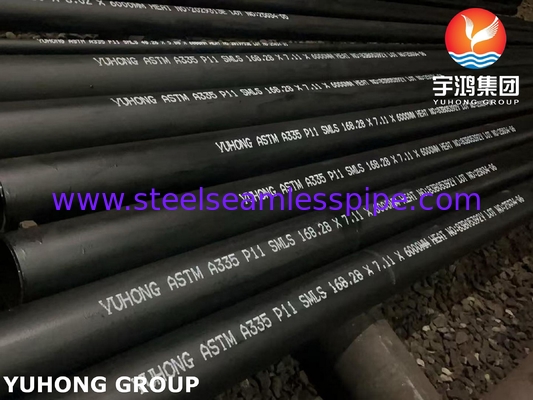

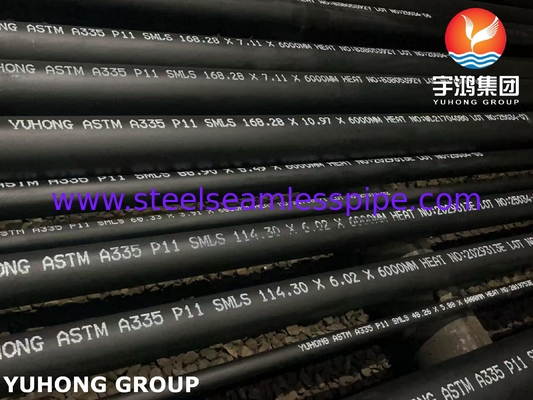

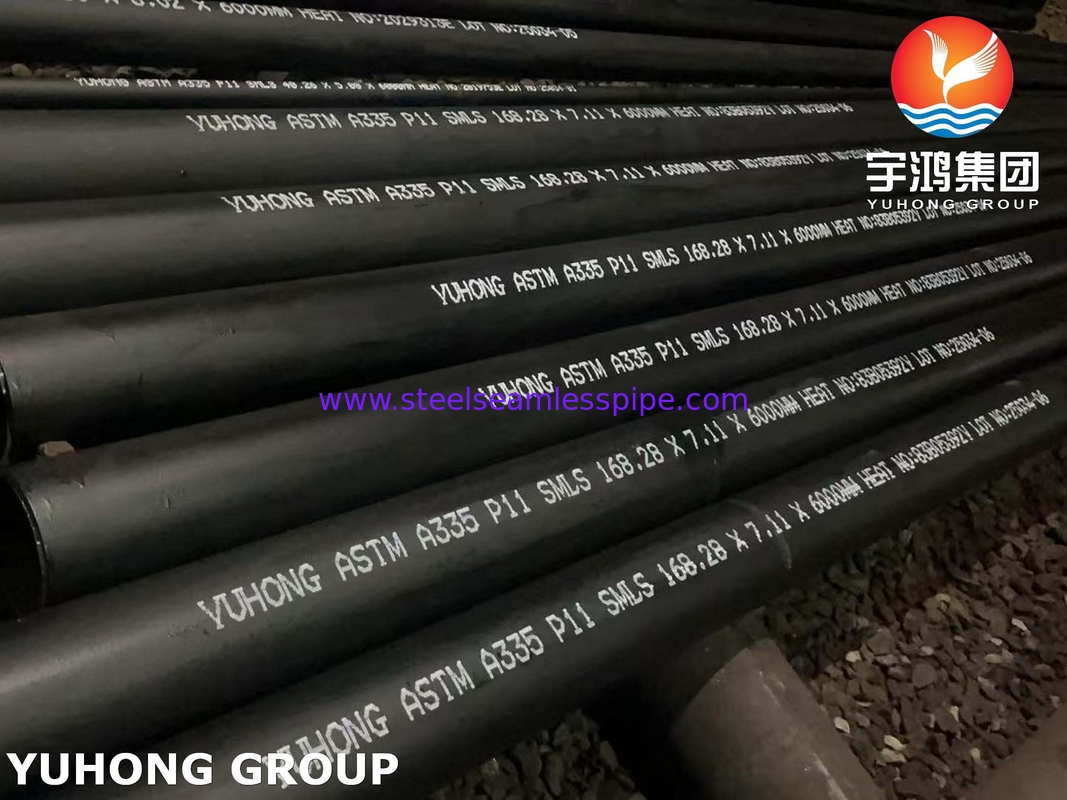

ASTM A335 P11 Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

Detalhes do produto:

Place of Origin:	China
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A335 P11(UNS K11597)

Condições de Pagamento e Envio:

Minimum Order Quantity:	100KGS
Preço:	Negociável
Packaging Details:	Bundle with plastic Cap / Ply Wooden Case
Delivery Time:	10-15 DAYS
Payment Terms:	L/C,T/T
Supply Ability:	According to customer's request

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (290)

Tubo sem emenda de aço inoxidável (277)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (29)

Tubo de agulha (107)

Tubos de barbatanas (631)

Trocador de calor (17)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (116)

defletor do permutador de calor (36)

Refrigerador de ar (8)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (114)

Tubulação da liga de níquel (261)

Tubo da liga de níquel (79)

Tubo da liga de cobre (227)

Tubo do aço de liga (184)

Tubo do titânio (10)

tubo recozido brilhante (153)

Tubo de caldeira (145)

encaixe de aço (804)

Flange de aço (590)

Outros (391)

Partes de revestimento (7)

Descrição de produto detalhada

Product Name:	Seamless Alloy-Steel Pipe	Specification:	ASTM A335/ ASME SA335
Material:	P11	W.T.:	MW/ AW
Type:	Seamless	Surface:	Bright Annealed, Pickled And Annealed, Polished
Ends:	Plain End, Beveled End	Application:	Boiler, Superheater, Heat-Exchanger
Destacar:	ASTM A335 P11 seamless pipe , ferritic alloy-steel high-temperature pipe , seamless steel pipe with warranty

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASTM A335 P11 Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

ASTM A335 P11 is a seamless ferritic alloy-steel pipe within the chromium-molybdenum (Cr-Mo) system, engineered for high-temperature/pressure service. Its microstructure consists of tempered bainite or ferrite-pearlite (depending on heat treatment), where the controlled alloying of Cr (1.00-1.50%) and Mo (0.44-0.65%) ensures superior creep resistance and rupture strength within the 540-593°C range. Manufactured via seamless hot-finished or cold-drawn processes, the pipe requires normalization and tempering to enhance grain boundary stability. It is certified for ASME B31.1/B31.3-regulated power piping and high-temperature refinery/petrochemical pipelines.

1.Chemical & Mechanical Properties

ASTM A335 P11 Chemical Composition (%)
C	Mn	P	S	Si	Cr	Mo
0.05%~0.15%	0.3%~0.6%	≤0.025%	≤0.025%	0.5%-1.00%	1.00%~1.5%	0.44%~0.65%

Mechanical Properties

Property	Standard Value
Tensile Strength	≥415 MPa (60 ksi)
Yield Strength (0.2% offset)	≥205 MPa (30 ksi)
Elongation	≥20%
Hardness (Brinell)	≤197 HBW

2. Key Adventages

High-Temperature Performance Advantages

Maintains excellent creep resistance at 540-593°C, with 2-3 times longer service life than carbon steel (e.g. A106)

Maintains rupture strength >60MPa under 593°C/100,000h condition

1.25% Cr content forms dense Cr₂O₃ scale, reducing oxidation rate by 80% vs carbon steel

Cost-Effectiveness Advantages

15-20% cost saving vs P22, most economical choice for <600°C service

Excellent high-temp stability extends maintenance intervals by 50% vs carbon steel

Fabrication Advantages

Standard PWHT(650-750°C) is sufficient, much simpler than high-alloy steels

Supports both hot bending(>950°C) and cold bending(annealing required)

Reliability Advantages

Normalizing+Tempering creates stable ferrite+pearlite structure

Complies with both ASME BPV Code and ASTM A335 standards

3. Key Applications

Power Industry: Power plant boilers (superheaters, reheaters, main steam pipelines)
Petrochemical Industry: Refinery hydrogenation units, cracking equipment pipelines
Natural Gas Transmission: High-pressure natural gas gathering pipelines
Industrial Boilers: High-pressure boiler heat exchangers, economizers, headers
Chemical Processing: High-temperature reactors, heat exchanger tubing

Characteristic	ASTM A335 P11	Carbon Steel (A106)	High-Alloy Steel (P91)
Max Service Temp	593°C	425°C	700°C
High-Temp Strength	★★★★☆	★★☆☆☆	★★★★★
Cost Efficiency	★★★★★	★★★★☆	★★★☆☆
Fabrication Difficulty	★★☆☆☆	★☆☆☆☆	★★★★☆
Maintenance Interval	3-5 years	1-2 years	5-8 years
