Copper Alloy Tube JIS H 3330 C1220T Copper Nickel Seamless Condenser Tubes

Detalhes do produto:

Place of Origin:	CHINA
Marca:	YUHONG
Certificação:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	C1220T,C1220TS

Condições de Pagamento e Envio:

Minimum Order Quantity:	100KGS

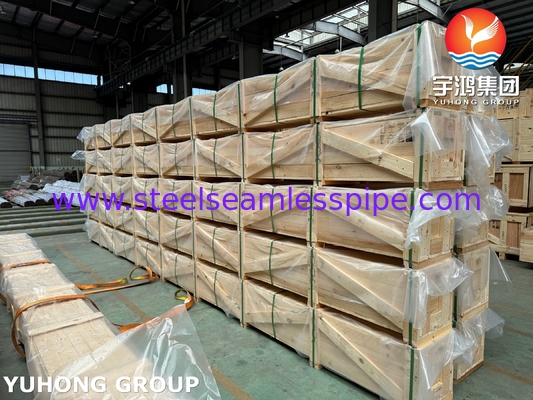

Packaging Details:	PLYWOOD CASE,BUNDLE,PALLET
Delivery Time:	7DAYS
Payment Terms:	L/C, T/T

Contato

Todos os Produtos

Tubo sem costura de aço inoxidável (285)

Tubo sem emenda de aço inoxidável (273)

Tubulação de aço inoxidável frente e verso (127)

Tubo de aço inoxidável frente e verso (28)

Tubo de agulha (98)

Tubos de barbatanas (608)

Trocador de calor (15)

tubo do permutador de calor (424)

Pacote de tubos de trocador de calor (37)

Permutador de calor Tubesheet (115)

defletor do permutador de calor (36)

Refrigerador de ar (7)

recipiente de pressão (4)

tubulação soldada de aço inoxidável (57)

Tubo soldado de aço inoxidável (112)

Tubulação da liga de níquel (259)

Tubo da liga de níquel (75)

Tubo da liga de cobre (219)

Tubo do aço de liga (177)

Tubo do titânio (9)

tubo recozido brilhante (153)

Tubo de caldeira (138)

encaixe de aço (791)

Flange de aço (577)

Outros (386)

Partes de revestimento (5)

Descrição de produto detalhada

MATERIAL:	C1220T,C1220TS	STANDARD:	JIS H 3330
OD:	12.7MM,19.05MM,25.4MM....	WT:	0.89MM,1.2MM,1.5MM...
STATUS:	O,OL,1/2H,H	TEST:	ET, HT, Flattening Test,Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination,Tension Testing.
Destacar:	C1220T Seamless Condenser Tubes , JIS Copper Alloy Tube , Copper Nickel Seamless Condenser Tubes

Copper Alloy Tube JIS H 3330 C1220T Copper Nickel Seamless Condenser Tubes

What is JIS H 3330 C1220T tube?

JIS H 3330 C1220T refers to a phosphorus-deoxidized copper tube standard specified by the Japanese Industrial Standards (JIS).

Key Features of JIS H 3330 C1220T Tube:

1. Material:

- C1220 (Phosphorus-Deoxidized Copper, DHP Copper)

- Contains a small amount of phosphorus (0.015–0.040%) for deoxidation, improving weldability and resistance to embrittlement.

- High thermal and electrical conductivity (though slightly lower than pure copper due to phosphorus content).

- Excellent corrosion resistance, especially in water and steam applications.

Grade	Chemical Composition%		Tensile Strength
	Cu	P	N/mm2
C1220T	99.9	0.015	315
		0.040

2. Standard:

- JIS H 3330 covers seamless copper and copper alloy tubes for general piping.

3. Applications:

- Plumbing & HVAC systems (water supply, heating, refrigeration).

- Gas distribution, medical gas systems, and industrial piping.

- Often used where brazing or welding** is required.

4. Comparable Standards:

- ASTM B68 (C12200) – U.S. equivalent.

- EN 1057 (CW024A) – European equivalent.

What is the advantage of JIS H 3330 C1220T tube?

High Conductivity: C1220 copper tubes offer excellent electrical conductivity, making them ideal for electrical and electronic applications.
Thermal Conductivity: These tubes have superior thermal conductivity, facilitating efficient heat transfer in heating, cooling, and refrigeration systems.
Corrosion Resistance: C1220 copper exhibits excellent corrosion resistance, ensuring durability and longevity in various environments.
Ease of Fabrication: C1220 copper is easily formable and weldable, allowing for seamless tube production and customization to meet specific requirements.

Dimensional Range

Outer Diameter - 4.00 to 22.00 mm
Wall Thickness - Between 0.15mm and 1.50 mm
Length upto 6 mtrs
End Applications

Heat Exchangers, Oil Coolers, Radiators, High Capacity Power Plants, Ship Building & Ship Repairs, Condensers, Offshore Oil rigs, Distiller Tubes, Evaporators, Ferrules etc.
